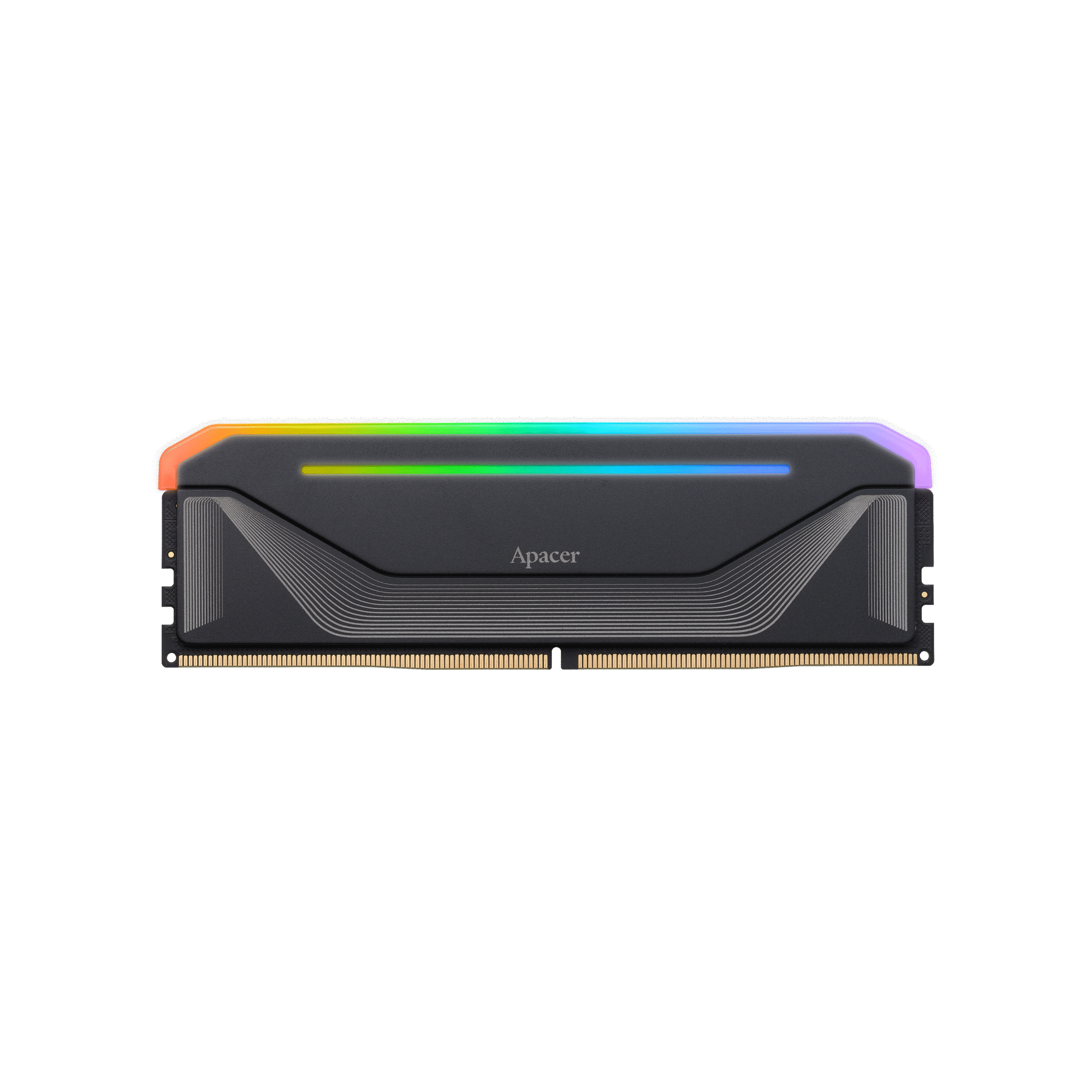

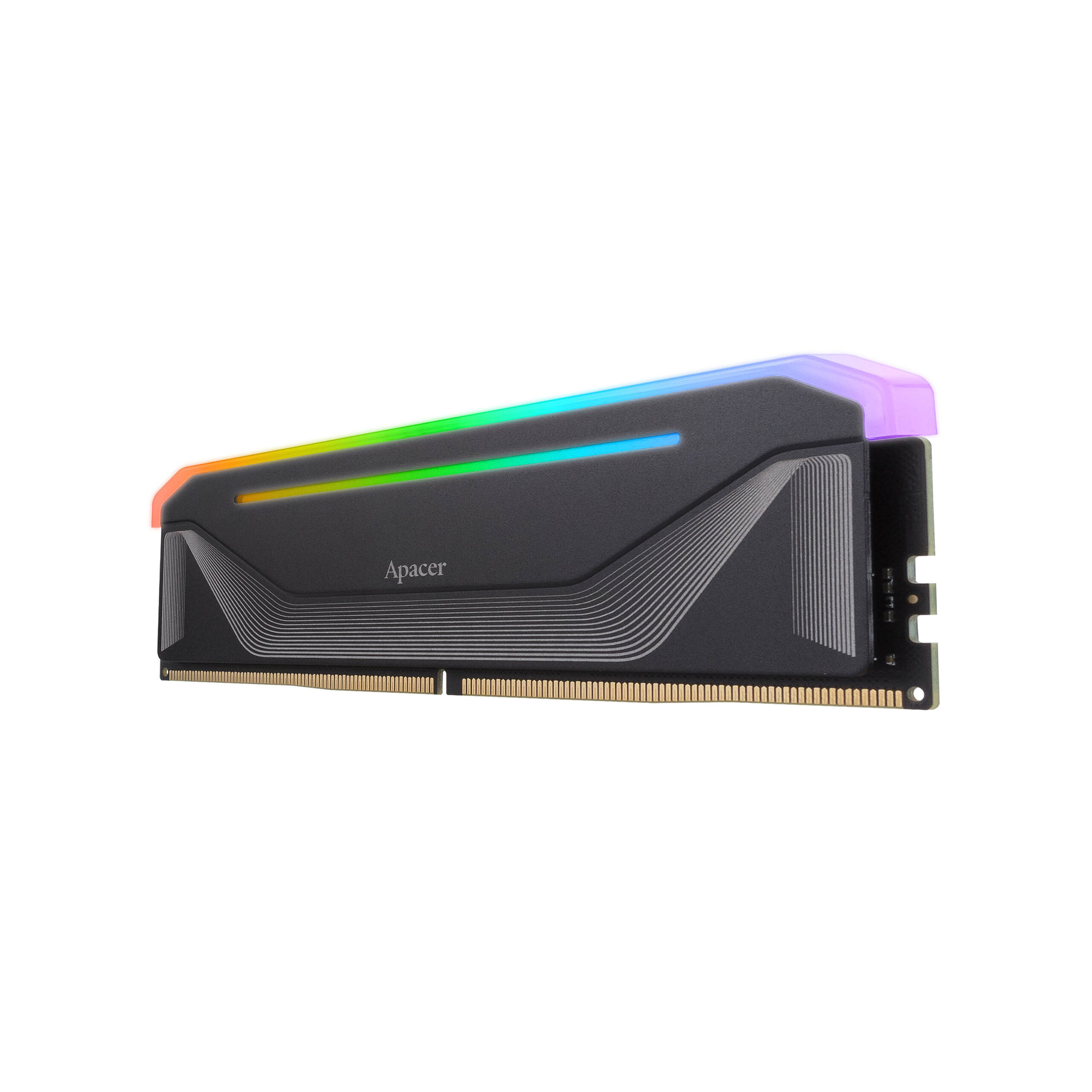

Apacer NOX RGB DDR5- Desktop Module
Lightning-Fast Performance
-
Up to 8000 MT/s Overclocking: Unlock top-tier speed using the latest Intel XMP 3.0 or AMD EXPO™ one-click overclocking profiles—ideal for high-performance gaming and productivity.
-
Versatile Frequency Options: Available in a broad spectrum—from 5200 MHz up to 8000 MHz—tailor configurations to your system’s needs.
Compact & Efficient Design
-
Low-Profile Height (<44 mm): Perfect for compact builds and ensures clearance with large CPU coolers or tight layouts.
-
Premium Aluminum Alloy Heatsink: Enhances thermal performance, keeping your memory cool under intense workloads.
Exceptional Power & Stability
-
PMIC Integration: Manages power delivery smartly for heightened system stability and efficient energy use.
-
Advanced LED Diffuser: Features Apacer’s Ultra-Wide Angle RGB Lighting Diffuser for immersive, customizable lighting.
Configuration & Build Support
-
Capacity Variants: Offers both single and dual-channel kits in 16GB, 24GB, 32GB, and 48GB configurations.
-
Voltage & Timing Options: Supported voltages—1.25V, 1.35V, 1.4V, 1.45V. CAS Latency options vary (e.g., 40-40-40-80, 38-48-48-96, etc.) depending on frequency.
-
DDR5 Architecture: Crafted using x8 FBGA DRAM chips with standard 288-pin form factor.
-
Certifications & Warranty: Fully certified (RoHS, CE, FCC, RCM, VCCI, UKCA, JEDEC) and backed by a 3-year limited warranty.
Specification
| Feature | Details |
|---|---|
| Memory Type | DDR5 Desktop Module |
| Speed Range | 6400 MHz |
| Capacity Options | 16 GB / 32 GB |
| Voltage Range | 1.35V to 1.45V |
| Latency Examples | 40-40-40-80, 38-48-48-96, etc. |
| Form Factor | 288-pin DIMM, x8 FBGA DRAM |
| Heatsink | Aluminum alloy, low-profile (<44 mm) |
| Power Tech | Integrated PMIC for stable power management |
| RGB Lighting | Ultra-Wide Angle RGB diffuser with customizable effects |
| Certifications | RoHS, CE, FCC, RCM, VCCI, UKCA, JEDEC |
| Warranty | 3 years limited |
